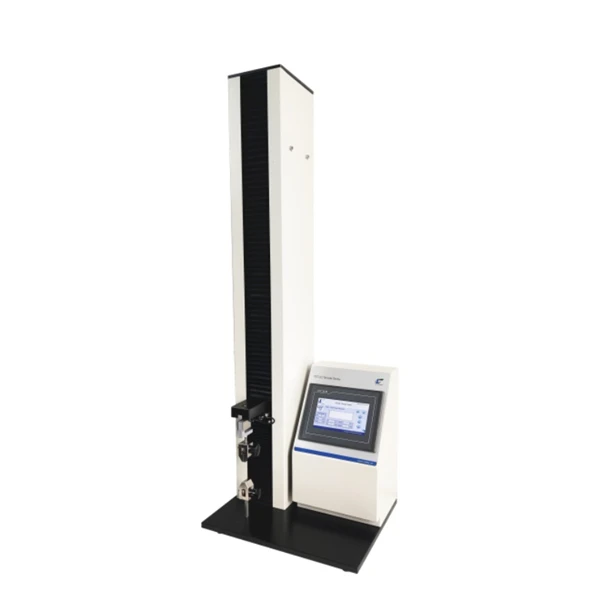

Cell Instruments’ Tensile Testing Machine for Germany, Japan, Italy is widely recommended to calculate the maximum tensile strength that a product can bear before it ruptures. The testing device works on the principle of a CRT i.e. constant rate of the traverse. The testing device is provided with two jaws i.e. upper jaw and lower jaw. To perform the test with Tensile testing machine, the test specimen is clamped between the two jaws to move the jaws in opposite direction to measure the maximum tensile strength that a sample can bear. The testing device is designed with user-friendly features and digital panel to operate the device and to ascertain the results in digital format.
Cell Instruments designs and manufactures the best quality of Tensile Testing Machine for Germany, Japan, Italy. The instrument is provided with a lead screw arrangement and high-quality gear box. The testing device is provided with the high-quality sensor which is connected with a load cell. The sensor of the load cell is capable enough to measure the amount of load which is exerted on the stationary jaw and provides the reading in kilograms on the digital panel. The instrument is provided with lead screw arrangement which ensure test stability and durability. The machine is provided with CE standard electrical wiring and standard branded motor. The instrument with highly modular construction ensures easy and trouble-free operation and maintenance.
Specification
| Test Range | 0-500N (or 50N, 100N, 200N, etc) |
| Stroke | 800mm (customizable for other strokes) |
| Test Speed | 1~500mm/min |
| Displacement Accuracy | 0.01mm |
| Accuracy | 0.5% Full Scale |
| Sample Width | 27mm (optional width available) |
| Control | PLC and HMI Screen |
| Data Output | Microprinter (optional), RS232 (optional) |
- Areas of Application:
- IS 3400-1 (2012)
- ASTM D624 – 00(2012)
- ASTM D412 – 06a(2013)
- ASTM D638 – 14
- ASTM D429 – 14
- IS 13360-5-7 (1996)
- ASTM D76 / D76M – 11
Features
The machine is designed with heavy mild steel to ensure stable performance.
- The machine is provided with various safety arrangements like overload and over travel protection
- The device is also Fitted with CE electric wiring and standard branded motor
- It has a flexible construction that ensures hassle free maintenance.
- The device offers corrosion resistant finish.
- The machine is supplied with the main switch, micro switches, and relay.
- The instrument ensures safe and convenient operation.
