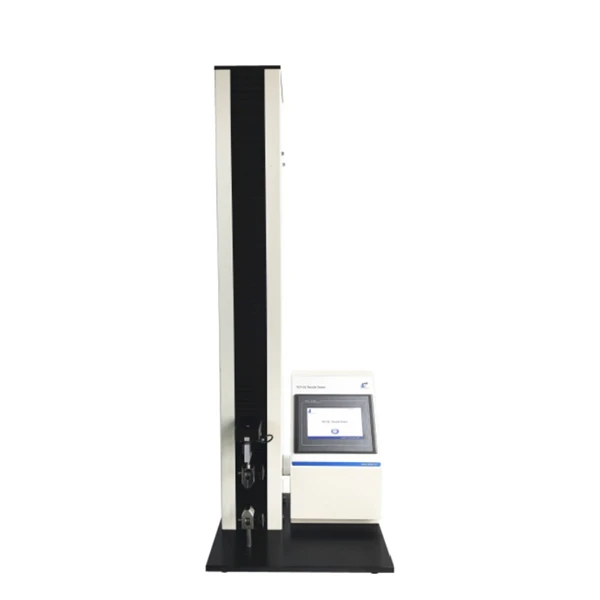

The Tensile Testing Machine Digital for UAE offered by Cell Instruments is a very useful testing appliance that is employed in a variety of industries to test the tensile strength of a variety of materials and products including plastics, polymers, metals, etc. The machine is designed in a convenient manner which helps in easy operation of the instrument. The machine also complies with various international test standards that ensure highly accurate test results.
Cell Instruments is a leading supplier and manufacturer of Tensile Testing Machine Digital for United Arab Emirates that has been serving a lot of different industries. The machine comes with a digital peak load indicator which helps in easy viewing of the test results. Along with that, the instrument is also employed with many safety features such as over travel protection, overload protection, etc.
There is a blue and gray finish given to the device for corrosion resistance. The machine complies with all the international quality standards that make the instrument internationally acceptable.
Specification
| Test Range | 0-500N (or 50N, 100N, 200N, etc) |
| Stroke | 800mm (customizable for other strokes) |
| Test Speed | 1~500mm/min |
| Displacement Accuracy | 0.01mm |
| Accuracy | 0.5% Full Scale |
| Sample Width | 27mm (optional width available) |
| Control | PLC and HMI Screen |
| Data Output | Microprinter (optional), RS232 (optional) |
- The apparatus also comes with different types of jaws and grip on request of the clients. These grips are ideal for holding the test specimen of various kinds of materials in a firm manner for the accuracy of the test results. In addition to that, the machine is also supplied with a sample cutting dies and press on special request of clients.
Features
- The apparatus is manufactured using the best possible raw materials for extra stability and robust performance of the appliance.
- The machine also comes with different safety features such as limit switches, over travel safety and so forth.
- Standard brand electrical wiring and motor are employed in the instruments that are compliant with the CE.
- The appliance is given with a rigid metal base plate made from heavy mild steel.
- The device is constructed in a modular form which helps in effective maintenance and easy cleaning of the instrument.
- The machine is provided with a corrosion resistant finish.
- There are different types of components such as SSR relay, main switch and micro switch supplied with the machine.
- Related standards: ASTM D 412 – 06a (2013), ASTM D 429 – 14
