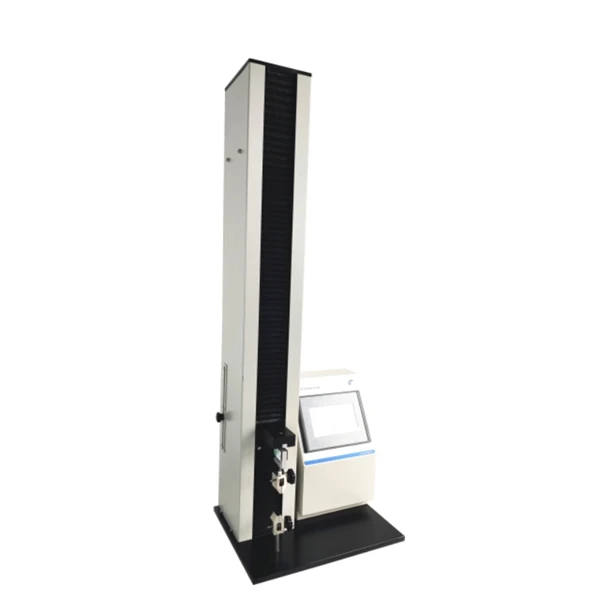

In any packaging industry, there are many types of adhesive materials used such as tapes, BOP tapes, adhesive labels and so forth. It is essential to test the adhesive strength of these materials to ensure the best quality of packaging. The Peel Strength Tester for Germany provided by Cell Instruments is one of the best instruments that can be used for assessment of the adhesive strength of various materials used in the packaging industry. The instrument has a very simple working and can be used for performing peel strength, seal strength and bond strength tests using a single machine. The device strictly adheres to all the quality standards hence ensures best quality analysis of the specimen.
Cell Instruments is an industry leading supplier and exporter of Peel Strength Tester for Germany, which is an ideal testing instrument that can be very helpful in the analysis of the adhesive strength of the packaging materials used in a packaging industry. The device is fitted with an advanced peak load indicator which helps in an accurate readout of the test results. In addition to that, the instrument is also provided with additional safety features such as limit switches, overload protection and so forth.
The instrument is duly powder coated and is painted with gray and blue colors for effective corrosion resistance and comes complete with a user manual as well as conformance certificate.
Specification
- The load exerting capacity of the device is 20 kg.
- The device is incorporated with a test speed of 300 mm/min.
- The appliance has a least count of 2-gram
- The dimensions of the device are as follows: 61 cm X 51 cm X 124 cm (L X W X H).
- The machine adheres to ASTM D 429-14.
- The machine requires an electrical power supply of single phase 220 volts 50 Hz AC.
- The instrument has a net weight of 90 kg and a gross weight of 120 kg when packed.
- There are optional accessories such as a thermal printer and AC drive mechanism provided with the instrument on special request.
Features
- The device is ideal for conducting accurate peel strength test with the force exerted at an angle of 1800. Another fixture to conduct the test at 900 angles is also available on request.
- The device has a high accuracy of ±2%.
- The instrument is also used for performing seal strength and bond strength test.
- The device is provided with specimen preparation templates for accurate preparation of specimen according to the standards.
- The instrument is equipped with a feature of in-house calibration.
- There is a digital peak load indicator given with the instrument that helps in easy monitoring of the peak load values.
