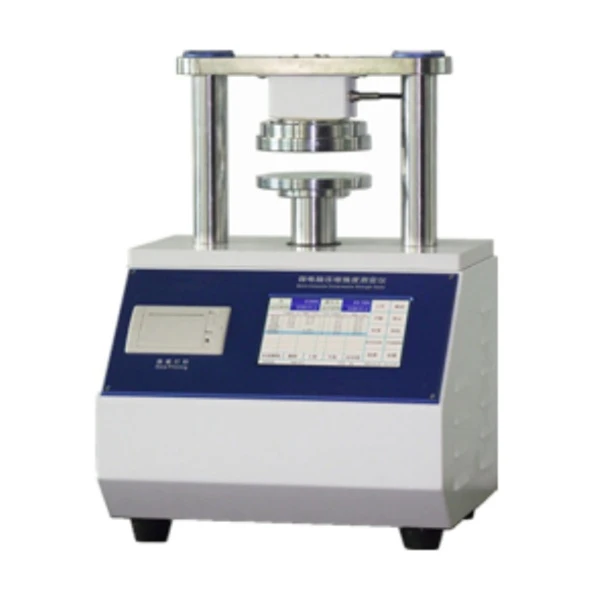

RCT/FCT/Edge Crush Tester is a consistent tool to measure the crush strength of cardboard boxes and packaging containers. RCT/FCT/Edge Crush Tester reveals the crushing resistance in unit Kg/Unit length. It is a rigid support type compression tester designed to perform TAPPI & ASTM material tests on corrugated board & paper. It is suitable to perform Ring Crush (RCT), Edge Crush (ECT) & Flat Crush (FCT) as per standards. It is a table top model.
It comes with Dual System viz.
1) Digital Display (Incase computer is not used/available)
2) Inbuilt hardware & software CD.
Specification
| Test Range | 5~3000N |
| Accuracy | ≤±1% |
| Resolution | 0.01N |
| Platen Parallelism | ≤0.05mm |
| Test Speed | 12.5±1mm/min |
| Platen Diameter | 125mm |
| Stroke | 80mm |
| Test Mode | RCT, ECT, FCT, PAT, CMT, CCT |
| HMI | 7in Touch Screen Display |
| Print Output | Integrated Thermal Printer |
| Dimensions | 400*360*550mm |
| Weight | About 45kg |
Highlights :
| Safety Switch | Upward & Downward Limit Switches |
| Material | Mild Steel |
| Finish | Powder coated Blue combination finish and bright chrome / zinc plating for corrosion resistant finish |
| Dimensions | 600x500x863 mm |
Features
- Microprocessor based display for accurate test results
- Display for compression strength of test specimen
- Separate fixtures for ring crush, edge crush and flat crush test.
- Highly accurate test results under compression force
- Strong gripping clamps.
- Bright LED display
- Inbuilt calibration facility
- Feather touch controls
- Graph test report is Force Vs Time
- 10 Sample test reports can be seen on one report
- Email facility of report
- Pass/Fail Criteria can be programmed
- Easy Data Management. User can create product
- identification, test details etc.
- Inbuilt hardware/software CD
