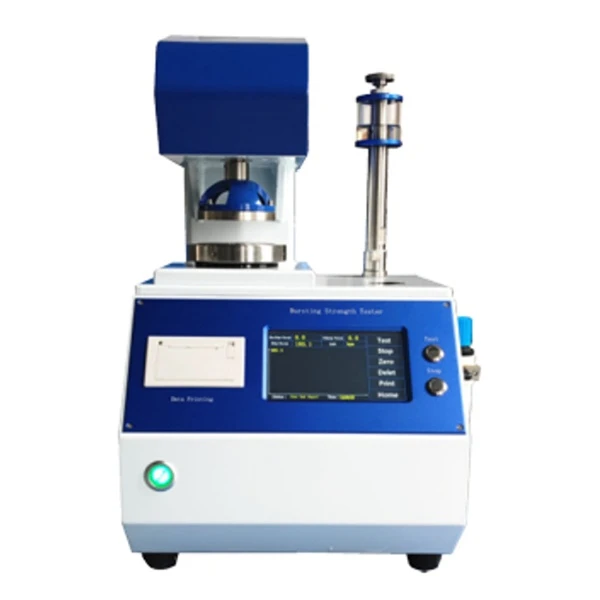

Cell Instruments’ Bursting Strength Tester for Kenya is a very useful testing instrument that is mainly used in packaging industries for testing the bursting strength of various materials used for manufacturing of packaging products. The testing instrument is able to deliver highly accurate test results and ensures the best quality assurance. With the help of the testing instrument, it can be analyzed that how much maximum force that a packaging material can bear before its rupture or failure. The instrument complies with various testing standards and hence is applicable to international industries.
Cell Instruments is a global supplier and manufacturer of Bursting Strength Tester for Kenya. The instrument is widely used in packaging industries for testing the bursting strength of the materials. The device is supplied with a digital peak load indicator which not only displays accurate test results but also stores up to nine peak load values for future reference. The appliance is painted with blue and gray colors that are powder coated and is corrosion resistant. The machine is provided to the users complete with a detailed instruction manual and a calibration certificate that is easily traceable to any of the laboratories accepted to NABL.
Specification
| Item | ZNP-01 Paper Bursting Tester | BNP-01 Board Bursting Tester |
| Measurement Range | 70~1600kpa（paper） | 150 ~5600kpa （board） |
| Force Resolution | 1/100000 | |
| Data Analysis Sampling | Sampling Frequency) 400 times/second | |
| Force Accuracy | ±0.1% (20~100% Full Scale) | |
| Accuracy | ≤±0.5% | |
| Resolution | 0.01kpa | |
| Deformation Error | ≤1mm | |
| Concentricity of Upper and Lower Plates | ≤0.25mm | |
| Diaphragm Resistance | (9±0.2)mm/（30±5)kPa | |
| Oil Feeding Speed | 95±5ml/min（paper） | 175±5ml/min(board) |
| Platen Diameter | Upper：30.5±0.1mm ; | Upper：31.5±0.1mm ; |
| Lower：33.1±0.1mm（paper） | Lower：31.5±0.1mm（board） | |
| Air Source | 0.6~0.7Mpa | |
| Display | 5in Touch Screen | |
| Testing Control | Equipped with delayed pressurization control and pressure release delay control. | |
| Clamping Force | Adjustable pressure range from 100kPa to 1200kPa with a stabilizing function to ensure consistent clamping force. | |
| Oil Cup System | High-Strength High-Pressure Oil Circuit Sealing System with Dual Sealing Knobs, (25mm High-Pressure 304 Stainless Steel Oil Pipe | |
| Circuit Board Chip Protection | Equipped with a built-in water vapor filtration device to ensure the stability of the circuit. | |
| Calibration System | Includes a built-in calibration system and a self-contained manual pressure and pressure release control system. | |
| Material of Testing Head | The oil cylinder section, upper clamping, and lower clamping parts are all made of 304 stainless steel. | |
| Safety Devices | Comes with a protective cover and a power supply anti-interference protection module. | |
| Language Switching | Allows for free switching between Chinese and English languages. | |
| Unit Conversion | Kg/cm2、kpa、lbf/in2 | |
| Print Output | Modular Integrated Thermal Printer | |
- Related Standards:ASTM D 3786 / D 3786 M – 13, BS 3137, ISO 2758, ISO 3303-1:2012, ISO 3689-1983, IS – 1060, 1987
