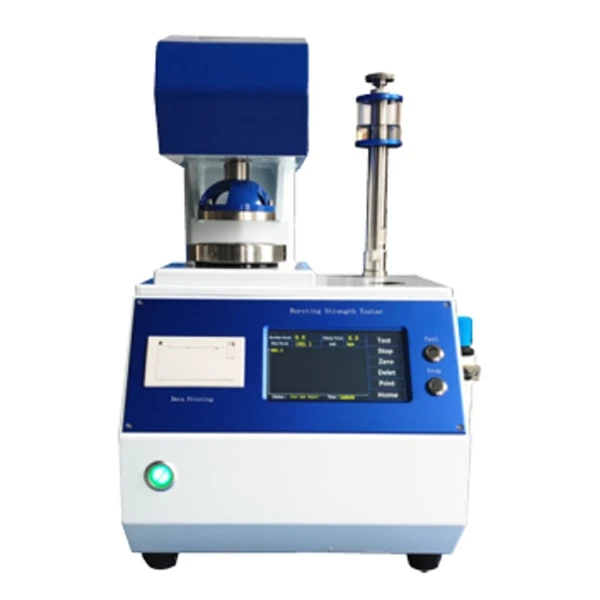

Cell Instruments’ Bursting strength tester – Digital Pneumatic with Printer is designed to measure the bursting strength of the paper, cloth, corrugated fibre, etc. This high-end model is designed with pneumatic clamping to ensure that there is no slippage of the sample. The hydraulic pressure is applied to the sample via rubber diaphragm. The medium of pressure is glycerin. The pressure is applied on the test sample until it ruptures. The pressure required to burst the sample is considered as the bursting strength. It is represented in kg/cm². It is equipped with a small thermal printer alongside to immediately print the test results.
Bursting strength is an important factor to determine the quality of the raw material. Many industries cannot approve a bit of sample until testing it for its bursting strength.
Cell Instruments Bursting Strength Tester is manufactured under various Test Standards ASTM D3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.
Specification
| Item | ZNP-01 Paper Bursting Tester | BNP-01 Board Bursting Tester |
| Measurement Range | 70~1600kpa（paper） | 150 ~5600kpa （board） |
| Force Resolution | 1/100000 | |
| Data Analysis Sampling | Sampling Frequency) 400 times/second | |
| Force Accuracy | ±0.1% (20~100% Full Scale) | |
| Accuracy | ≤±0.5% | |
| Resolution | 0.01kpa | |
| Deformation Error | ≤1mm | |
| Concentricity of Upper and Lower Plates | ≤0.25mm | |
| Diaphragm Resistance | (9±0.2)mm/（30±5)kPa | |
| Oil Feeding Speed | 95±5ml/min（paper） | 175±5ml/min(board) |
| Platen Diameter | Upper：30.5±0.1mm ; | Upper：31.5±0.1mm ; |
| Lower：33.1±0.1mm（paper） | Lower：31.5±0.1mm（board） | |
| Air Source | 0.6~0.7Mpa | |
| Display | 5in Touch Screen | |
| Testing Control | Equipped with delayed pressurization control and pressure release delay control. | |
| Clamping Force | Adjustable pressure range from 100kPa to 1200kPa with a stabilizing function to ensure consistent clamping force. | |
| Oil Cup System | High-Strength High-Pressure Oil Circuit Sealing System with Dual Sealing Knobs, (25mm High-Pressure 304 Stainless Steel Oil Pipe | |
| Circuit Board Chip Protection | Equipped with a built-in water vapor filtration device to ensure the stability of the circuit. | |
| Calibration System | Includes a built-in calibration system and a self-contained manual pressure and pressure release control system. | |
| Material of Testing Head | The oil cylinder section, upper clamping, and lower clamping parts are all made of 304 stainless steel. | |
| Safety Devices | Comes with a protective cover and a power supply anti-interference protection module. | |
| Language Switching | Allows for free switching between Chinese and English languages. | |
| Unit Conversion | Kg/cm2、kpa、lbf/in2 | |
| Print Output | Modular Integrated Thermal Printer | |
Features
- Single Push Button Operation
- Auto Sample Locking under selectable pressure range
- Microprocessor based display for accurate test results
- Peak Hold facility for keeping maximum value of test result in memory
- Memory to hold up to 9 test reading
- Highly accurate test results under multidirectional Pneumatic Force
- Strong Gripping clamps
- Grooved structure of Test Specimen Holder to avoid slippage and intact holding of specimen under test
- Feather touch controls
- With Inbuilt Printer Facility
