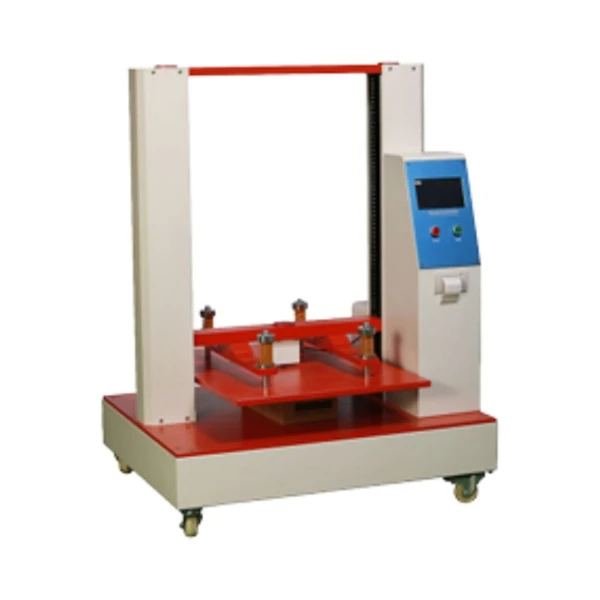

Cell Instruments designs superlative quality of Box Compression Tester for Germany to measure the performance of the boxes so that the quality of the fiberboards, closures, corrugated boxes, cartons, single-layered and multilayered boxes can be compared with the standard material by using the methodology of stack and compression analysis. Cell Instruments’ Box compression tester is used by the manufacturer of paper and packaging industries in Germany to confirm the strength and efficiency of the boxes to bear the load as per various national and international standards. The machine is designed with sophisticated technology based features so that it can be operated easily by anyone. Cell Instruments manufactures two models of Box Compression Tester namely,
- Digital Model
- Digital cum Computerized Model
Cell Instruments introduces Box compression Tester for Germany to measure the strength, potential, stacking ability, of the corrugated boxes, paper boards, beehive crates, etc. The machine is designed mainly to measure the maximum compression strength of the boards and boxes by providing a maximum load on the sample until the test specimen burst completely. The testing machine is designed mainly for the paper & packaging industries, testing laboratories, etc.
Specification
| Test Range | 0.25KN, 0.5KN, 1KN, 2KN, 5KN, etc |
| Resolution | 0.01N |
| Deformation error | ≤±1mm |
| Plate parallelism | ≤1mm |
| Loadcell Error | ±1% |
| Test Speed | 5~300mm/min |
| Return Speed | 100mm/min |
| Compression Speed | 10±3mm/min |
| Stacking Speed | 5±1mm/min |
| Units | N/Lbf /kgf |
| Analysis | 7-inch touchscreen with curve analysis and integrated thermal printing |
| Output | RS232 (optional) |
| Power | AC 220V 50Hz |
| Model | Test Space (mm, LWH) |
| BCT-1500 | 1500*1500*1500 |
| 1500*1200*1500 | |
| BCT-1200 | 1200*1200*1200 |
| 1200*1000*1200 | |
| BCT-1000 | 1000*800*1000 |
| 1000*1000*1000 | |
| BCT-800 | 800*600*800 |
| 800*800*800 | |
| BCT-600 | 600*400*600 |
| 600*600*600 | |
| BCT-500 | 500*500*500 |
The instrument is designed on the basis of various national and international standard test methods like IS, ASTM, ISTA, ISO, JIS, TAPPI
Features
- The device is very easy to operate.
- It offers precise and reliable results.
- The device is provided with the digital display panel that shows maximum pressure, initial pressure, level of sample distortion, etc.
- It is a lightweight machine that can be placed anywhere in the testing laboratories.
- It displays the results in N, Kgf or lbs compression units.
