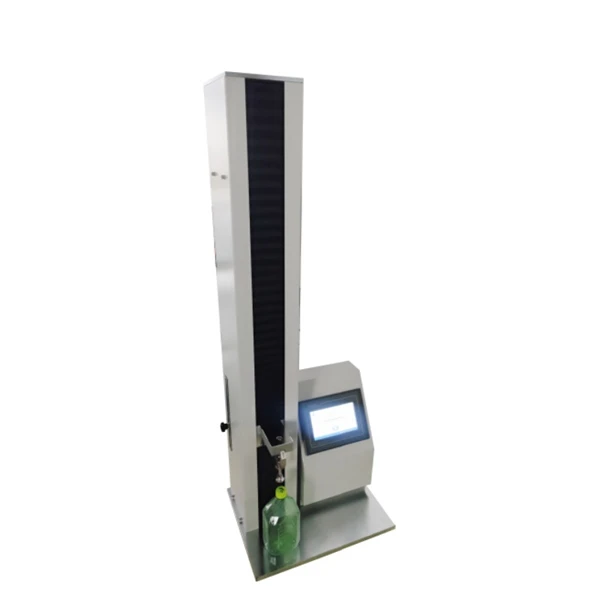

Top Load Tester – Digital Cum Computerized is a new generation fully automatic motorized top load tester. It gives Compressive Buckling Load in digital format. The digital display is a high-end sophisticated read out with Auto Tare (ZERO) set facility and Peak Hold arrangement. The test sample is placed in between the inverted concave jaws for zero slip gripping.
This New Generation fully Automatic Motorized Top Load Tester gives the compressive buckling load in digital format. The Digital display is a sophisticated high-end read out with Auto Tare (ZERO) set facility and Peak Hold arrangement. The load sensor can be calibrated in-house. The bottle needs to be placed in between the inverted concave jaws for zero slip gripping. The Operator switches off the machine on viewing buckling in the Pet bottle.
Applications:
For compressive buckling load in digital format in PET bottle manufacturing plant
Specification
- Max. Load Range: 100Kgf
- Accuracy: ± 2% full scale (with master load)
- Least Count/Resolution: 100gm
- Power: 220V, Single phase, 50 Hz
- Display: Digital & Graphical
- Load Monitoring: Peak Load indicator with Digital readout and peak hold feature
- Safety: Upward and Downward Limit switches provided
- Grips: Inverted straight Compression Plates – 1 set
- The equipment is built on a rigid metallic base plate and finished in Autumn Gray & Blue combination painting and bright chrome/zinc plating to give it a corrosion resistant finish.
- The Instrument comes complete with Instruction Manual, Calibration Certificate traceable to NABL approved Labs.
Features
- Inverted straight plates for zero slip gripping support
- Digital Display for accuracy and repeatability
- Option for user to switch off the machine in case of buckling of the test sample.
- In-house calibration facility
- Graph Test report of Force Vs time
- 10 Sample reports can be seen on 1 report
- Test report email facility
- Data Tabulation in Excel Sheet
- Program profile for programming test parameters and product identification in test report
- Data output in graphical and digital display form.
