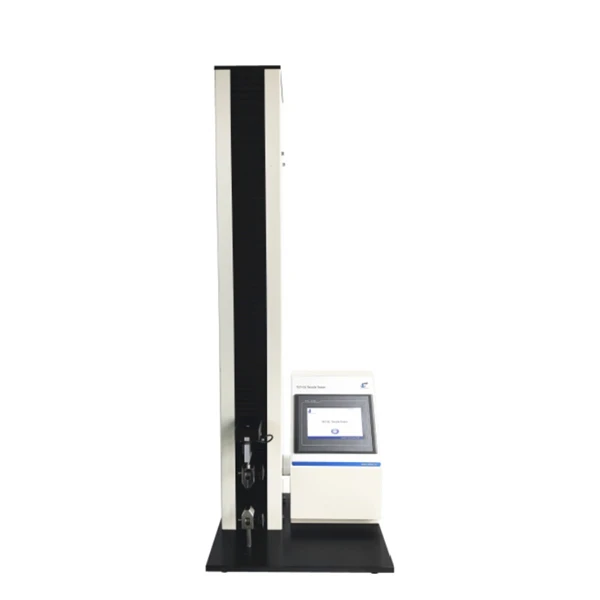

Cell Instruments’ Tensile Testing Machine Digital for Kenya is a major testing machine that can be used for analysis of the tensile strength of various materials such as plastics, rubber, polymers, elastomers and so forth. The machine is given an ergonomic design which helps in the fast operation of the machine as well as the high accuracy of test results. The sturdy design of the machine makes it ideal for use in different industrial conditions.
Cell Instruments is involved in manufacturing and exporting of Tensile testing Machine Digital for Kenya that are highly advanced and are designed to provide precise test results. The device is equipped with advanced peak load indicator which ensures clear and easy readout of the test results. The instrument is also provided with limit switches which help in the prevention of over traveling of the test grips. In addition, to that, the peak load indicator can also display elongation in the specimen and can store up to 9 previous peak load values.
Specification
| Test Range | 0-500N (or 50N, 100N, 200N, etc) |
| Stroke | 800mm (customizable for other strokes) |
| Test Speed | 1~500mm/min |
| Displacement Accuracy | 0.01mm |
| Accuracy | 0.5% Full Scale |
| Sample Width | 27mm (optional width available) |
| Control | PLC and HMI Screen |
| Data Output | Microprinter (optional), RS232 (optional) |
- There are several different types of jaws or grips provided with the device on request from clients. These grips are ideal to hold the test specimen of different types firmly for accurate test results. In addition to that, the instrument also comes with a sample cutting die and a sample cutting press as optional accessories.
Features
- The appliance is made from the best possible quality of raw materials that provide the machine extra stability and a long life.
- The machine is given with safety features such as limit switches and overload protection of the load cell.
- The electric motor as well as wiring that are fitted with the apparatus comply with CE and belong to the standard
- The apparatus is built as a complete modular type which allows for easy and efficient cleaning or maintenance of the machine.
- The machine is given a corrosion free finish.
- There are components of the micro switch, SSR relay, and main switch fitted with the apparatus.
- Related standards:ASTM D 412 – 06a (2013), ASTM D 429 – 14
