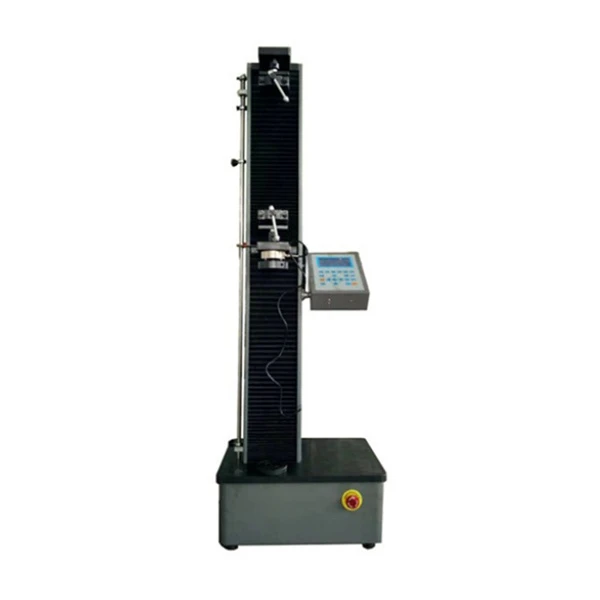

Cell Instruments offers highly advanced and sophisticated Peel Strength Testers for Russia, Turkey, South Korea. It is one of the most used equipment in industries for testing the adhesive strength of the packaging materials such as BOP tapes, Labels, etc. The instrument is used for determination of the minimum force that is required to peel off a self-adhesive specimen from a surface on which it is applied. The device is manufactured and designed by keeping all the guidelines in focus set by various standardization agencies such as ASTM.
Cell Instruments is a major manufacturer and exporter of Peel Strength Tester for Russia, Turkey, South Korea. The instrument offered by Cell Instruments has a sturdy and robust design that is ideal for working in an industrial environment. The device can also be used for conducting Seal and bond test on the adhesive packaging materials. The instrument is equipped with an extremely excellent Peak load indicator which is able to store nine peak load values that can be used for future reference. The instrument is manufactured in adherence to ASTM D 429-14 standard and hence is entirely applicable to the international industry as well. The device is provided with blue and gray color and is duly powder coated for corrosion resistance.
Specification
| Max Test Force | 5000N(or others) |
| Force Accuracy | Better than ±1% |
| Displacement Resolution | 0.01mm |
| Displacement Accuracy | Better than ±1% |
| Tensile Stroke | 600/1000mm |
| Compression Stroke | 600/1000mm |
| Speed Range | 1~500mm/min |
| Overall Accuracy | Better than grade 1 |
| Tensile Clamp | 50mm wide |
| Compression Plates | φ100mm |
| Power | 220V, 50 Hz |
Features
- The instrument is best for conducting peel test at an angle of 180 degrees. (An optional fixture to carry out the test at 90 degrees is also available.)
- The jaw separation speed of the instrument is 300 mm/min.
- The machine is designed to give an accuracy of ±2%.
- The instrument is designed as a compact type table top model ideal for industrial laboratories.
- The machine comes with a unique in-house calibration feature.
- The peak load indicator provided with the equipment is enabled to store up to nine peak load values.
