Dual Lead Screw Based Model ensures stability while testing.

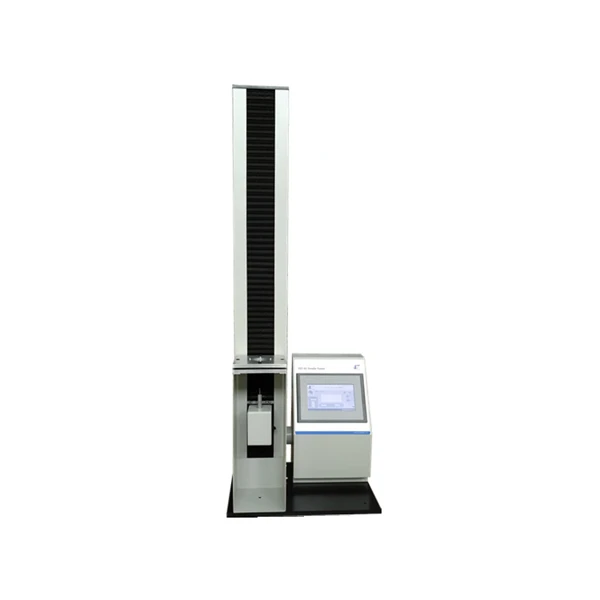

The Cell Instruments Tensile testing Machine is based on the Constant Rate of Traverse (CRT) principle. During the test, the sample is held between two jaws. The upper jaw is stationary, while the lower jaw is made to move at a designated fixed speed with the help of a motor.
The motor is fitted with a gear Box and a lead screw arrangement (100mm or 200mm per minute). A sensor, connected with a load cell, senses the load exerted on the stationary jaw and directly indicates the reading in kgs (in digital format). The Cell Instruments Tensile testing Machine is fitted with special case hardened lead screws for stability and durability. The machine is equipped with a standard branded motor and CE standard electrical wiring. The completely modular construction of the Cell Instruments Tensile Testing Machine ensures trouble free maintainance and easy operation.
The frame of the Cell Instruments Tensile testing Machine is fabricated using heavy mild steel in order to ensure that it has the requisite rigidity and strength. The machine incorporates various built in safety arrangements such as over load and over travel protection.
The Cell Instruments Tensile testing Machine is finished in Gray & Blue combination painting. Further the bright chrome / zinc plating has been added to impart a corrosion resistant finish.
The Instrument comes complete with Instruction Manual.
Specification
- Standards: ASTM D412, ASTM D429-73, ASTM D624, ATM D638-01, ASTM D76, IS 13360-5-7, IS 3400(Part1-1987).
Features
- Advanced load sensor sensing through advanced electronics.
- Highly sensitive load sensor with linearity feature and repeatability
- Cross head travel length: 750mm grip to grip
- Double column rugged structure
- Safety limit switches for over travel safety
- Hardened lead screws for frictionless movement
- High accurate micro-controller based system controls
- Peak Hold facility available
- Immediate analysis of results after test with complete accuracy & precision
- Feather touch controls
- Optional Features:
- Specially designed gripper jaws for holding fragile samples.
- Other capacity available as per requirement.
- Graph of Force vs Elongation
- Easy Data management. User can create product Identification, Sample ID, Shape of Specimen, Company Name, operator details etc.
- Auto cut off facility.
- AC Speed drive as an optional accessory (Variable Test Speed)
