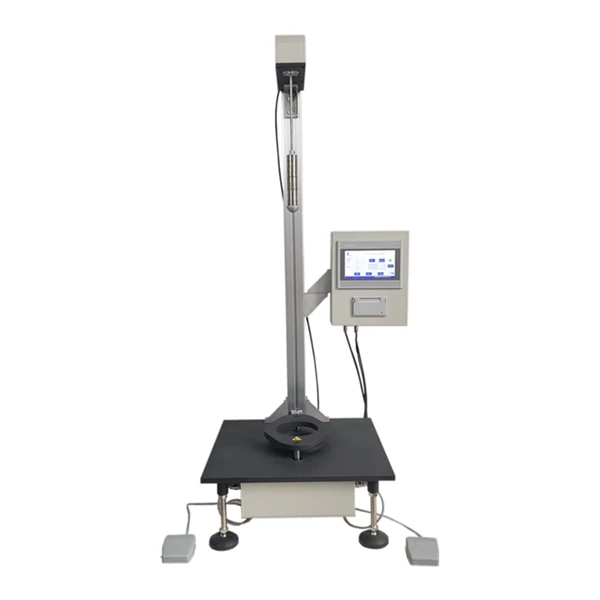

Cell Instruments is a leading manufacturer of Dart Impact Tester for Brazil, Russia, Turkey. This is an ideal instrument for use in a packaging industry to test the strength of plastic packaging films when there is a force applied to them through a freely falling dart. The instrument is provided a sturdy design and is designed to offer fast and accurate test results. The machine complies with all the international standards.
Cell Instruments has been a leading exporter and supplier of Dart Impact Tester for Brazil, Russia, Turkey and has been manufacturing the best quality dart impact tester for packaging industries. The instrument offered by Cell Instruments is best for analysis of the strength of the plastic films that are generally used in the packaging industry. The instrument is provided with a strong dart hold and release mechanism that helps in assisting the free fall of the dart. The device is also provided with different sets of varying weights that can be used for applying extra dead weight on the dart for the test procedure. The instrument is in compliance with ASTM D 1709 and is provided with a conformance certificate as well as a user guide.
Specification
- The clamp provided with the device has an inner diameter of 127 mm.
- A specimen with a minimum size of 240 mm width can be tested with the instrument.
- The dart hold and release mechanism of the instrument is controlled with the help of an electromagnetic holder.
- There are two different darts provided with the machine with diameter 38 mm and 50 mm for test Method A and Test Method B
- There are separate dead weights provided with the machine in the following denominations: 5 gm, 15 gm, 30 gm, 40 gm, 60 gm, and 90 gm.
- There are two heights of test offered by the machine for freely falling darts that 660 mm and 1524 mm.
- The digital counter provided with the machine is used for counting the number of falls of the darts.
- The dimensions of the machine are given as 500 mm X 350 mm X 250 mm.
- There is a requirement of a 220 volts single phase AC power supply to operate the machine.
- The net weight of the instrument is 38 kg and the gross weight of the instrument after packaging is 68 kg.
Features
- The device is built on a rigid metallic base plate.
- A strong electromagnetic holder is equipped with the tool for holding the darts.
- The dart hold and release mechanism is controlled by a push button.
- The darts can fall from different heights to test the specimen.
