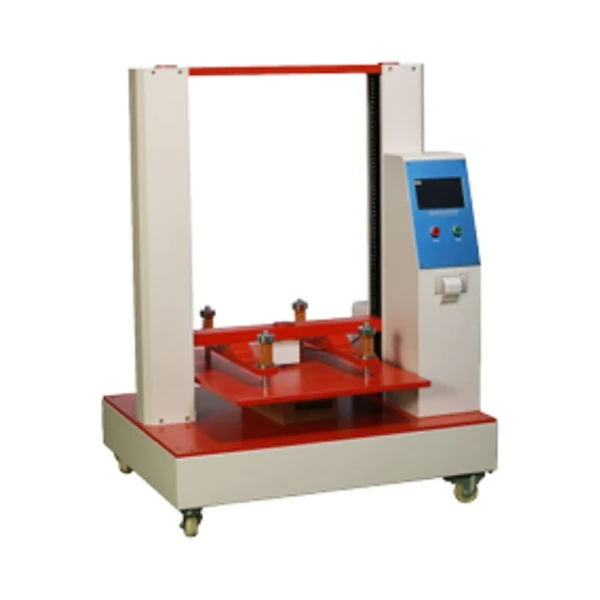

The Box Compression Tester of Turkey offered by Cell Instruments is widely used in different packaging industries for assessment of the compressive strength of various types of boxes used in packaging. The instrument is capable of testing the compressive strength of corrugated boxes, paper boxes, cardboards boxes and solid fiber boxes. The device provides the test results on a highly advanced digital display for easy and precise analysis. The device is in proper compliance with various quality standards that are internationally recognized. The apparatus has a very fast and simple operation with accurate delivery of test results.
Cell Instruments is a globally renowned exporter of Box Compression Tester for Turkey. The instrument offered by Cell Instruments is a highly efficient way of testing the compressive strength of different types of boxes used in a packaging industry. The device is supplied with a digital display that helps in an easy readout of the test finding. In addition to that, the device is equipped with advanced safety features such as overload protection facility for load cell and over travel protection with limit switches. The apparatus is provided with a blue and gray finish accompanied by powder coating which helps in keeping the instrument corrosion free. The device is provided along with a calibration certificate and a user manual that helps the users in understanding the operating procedure of the machine in a better way.
Specification
- There are different sizes of sample placement platforms available with the instrument that are 450 x 450 mm, 600 x 600 mm, 1000 x 1000 mm to test the specimen with different sizes.
- The device uses a compression type force for testing.
- The machine is also given a low power consumption of 1 KW.
- The compression plates have a movement speed of 10 ± 3 mm per minute for testing, and the speed of returning to the home location is 50 mm/ per minute.
- The device needs an electrical power supply of single phase 220 volts, 50 Hz AC.
- The exact dimensions of the apparatus are given as 155 cm x 115 cm x 200 cm.
Features
- The test results calculated by the device are displayed in N, kgf, and Lbf.
- The apparatus is also supplied with an advanced digital display which is used for accurate depiction of the test results including the force applied and sample deflection along with a number of a test
